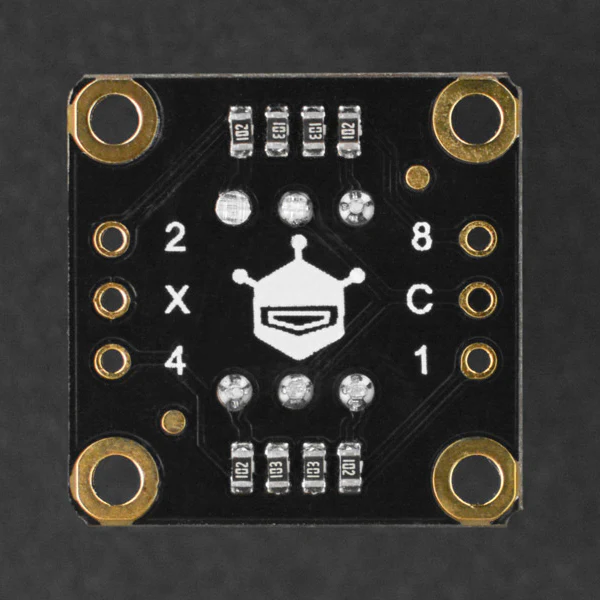

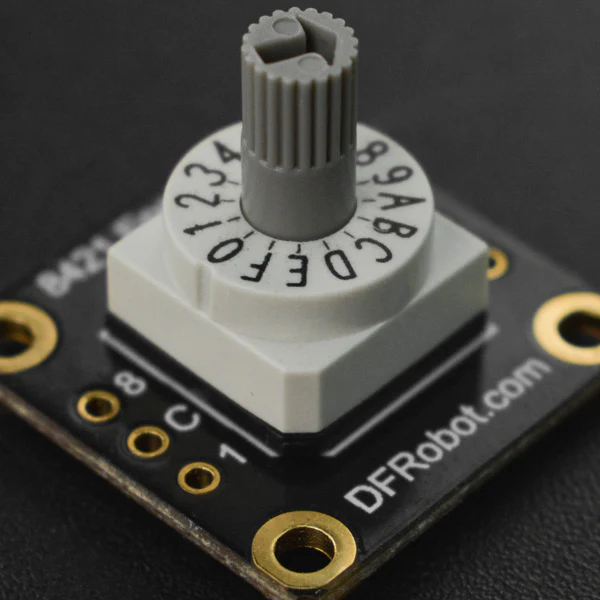

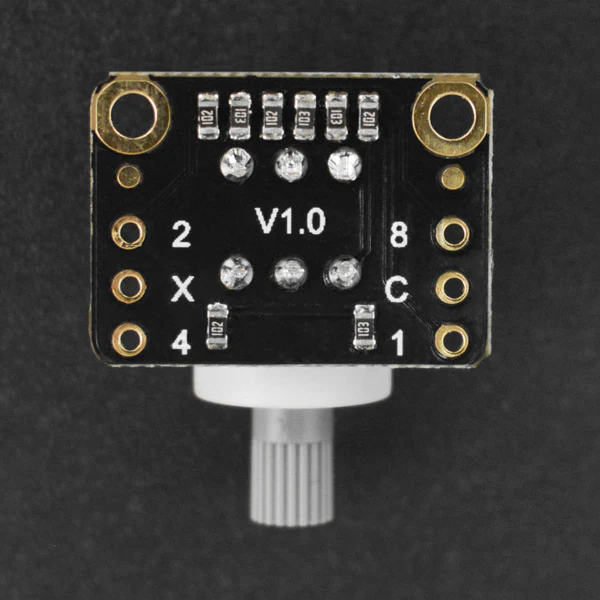

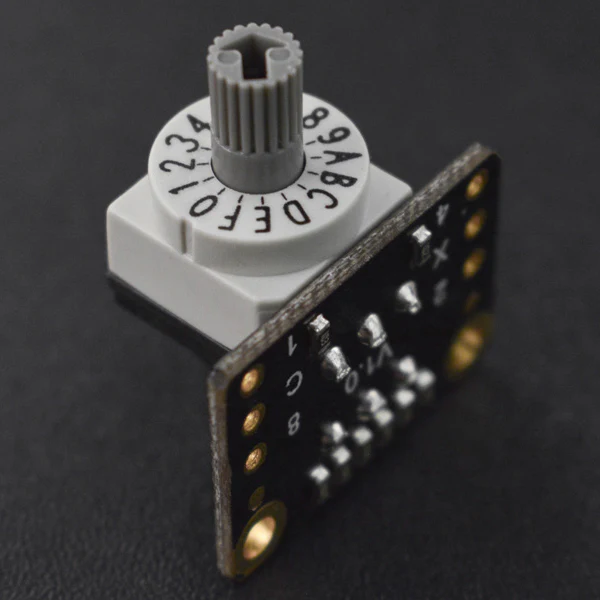

8421 Encoder

This is an 8421 absolute position encoder with 16-gear code (0-F). The mechanical position determines the uniqueness of each position of the encoder.

Compared to a potentiometer, it doesn’t require memory, reference point and constant counting. Whenever you need the position, you can just easily read it.

In this case, the anti-interference of the encoder and the reliability of the data are greatly improved. And because of the absolute uniqueness of each position, the anti-interference ability, and no power-off memory function required, this product is widely used in many kinds of industrial systems for device status controlling.

SPECIFICATION

Operating Current	150mA, max 42V
8421 Encode	16-gear(0-F)
Service Life	10000 steps
Operating Temperature	-40~85℃

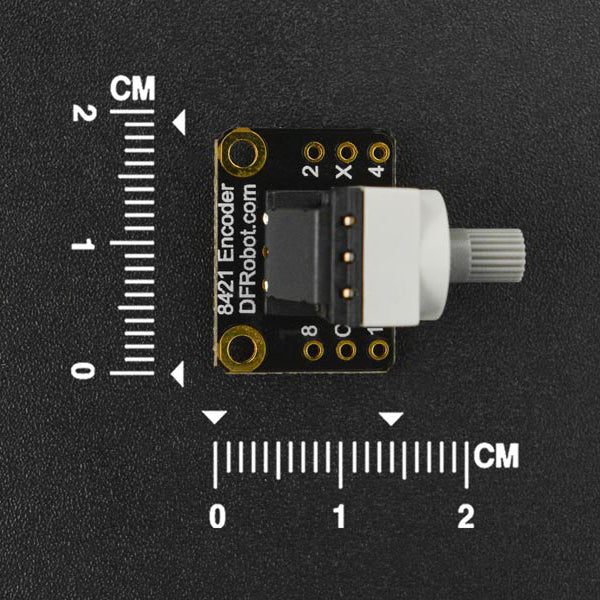

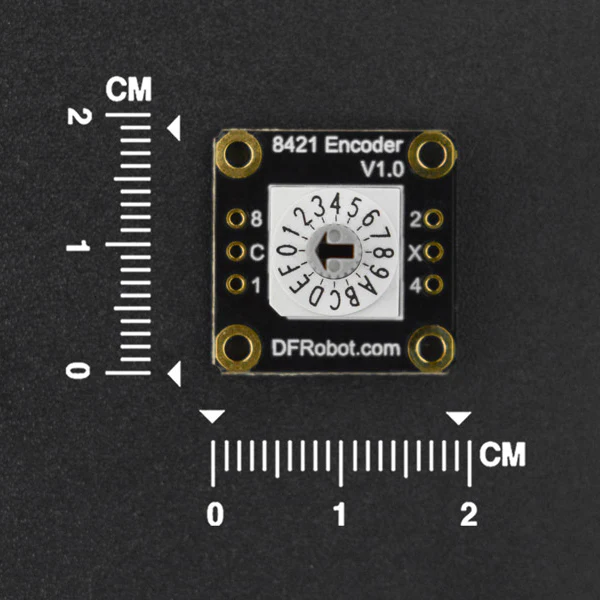

Dimension	Vertical - 19 x 19mm/0.75 x 0.75”
	Horizontal - 14 x 19mm/0.55 x 0.75”
Mounting Aperture	2.0mm
Mounting Hole Pitch	15x15mm

DOCUMENTS

• Product wiki
  • Vertical
  • Horizontal

SHIPPING LIST

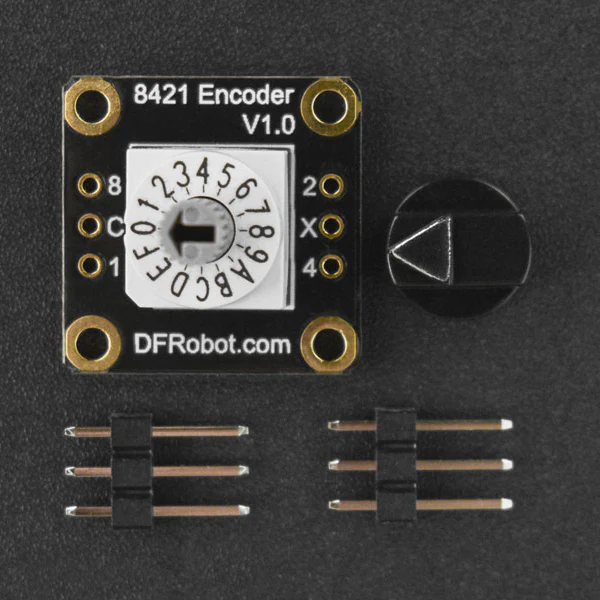

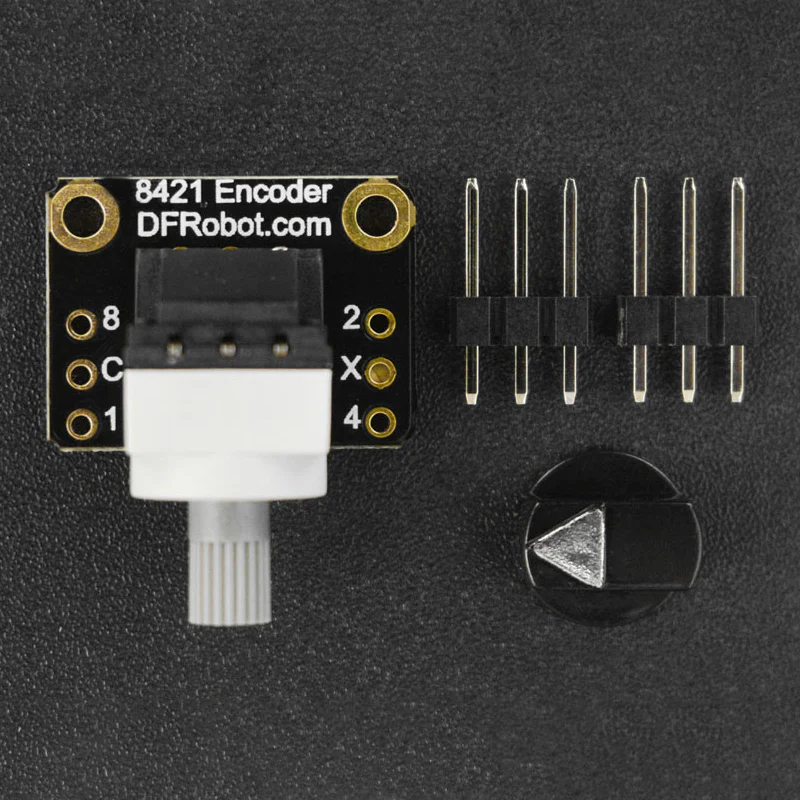

• 8421 Encoder x1
• 2.54 Black Single Row Pin Header-3P x2
