Adafruit Quad Side-By-Side FeatherWing Kit with Headers

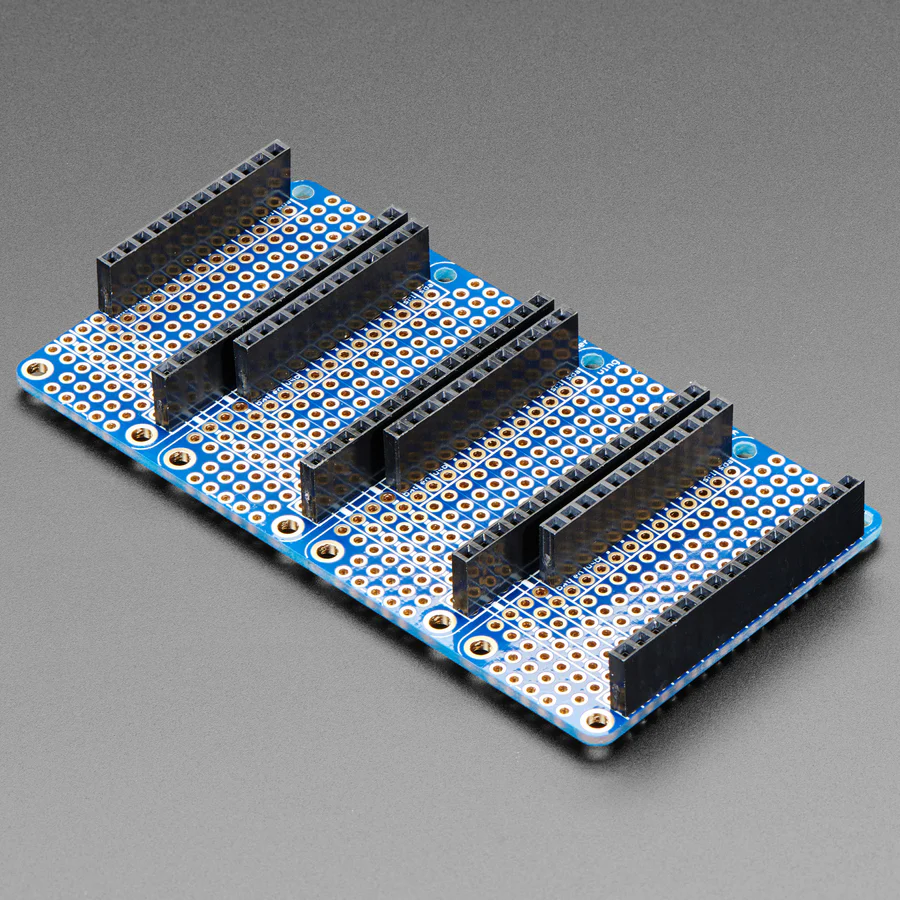

This is the FeatherWing Quad Side-by-Side - a prototyping add-on and more for all Feather boards.
This is similar to our FeatherWing Proto except there are four! The magic of the Quad comes when you want to connect your Feather to three other Feather Wings without needing any stacking headers! The Quad comes with:
- 1 Quad Side-by-side Wing PCB
- 4 sets Feather Female Headers
The Quad, like the Proto, has three breakouts for each pin on a Feather, as well as a bunch of plain grid proto holes. Also, the four sets of pins are cross connected and for GND and 3.3V, there are a full strip of connected pads.
You'll need to solder on the female headers to the PCB, the Quad comes as a mini kit!
We also have a Quad FeatherWing as a 2x2 kit for a slightly different arrangement
Check out our range of Feather boards here.
TECHNICAL DETAILS
- PCB dimensions (unassembled): 95 x 50 x 1.5mm
