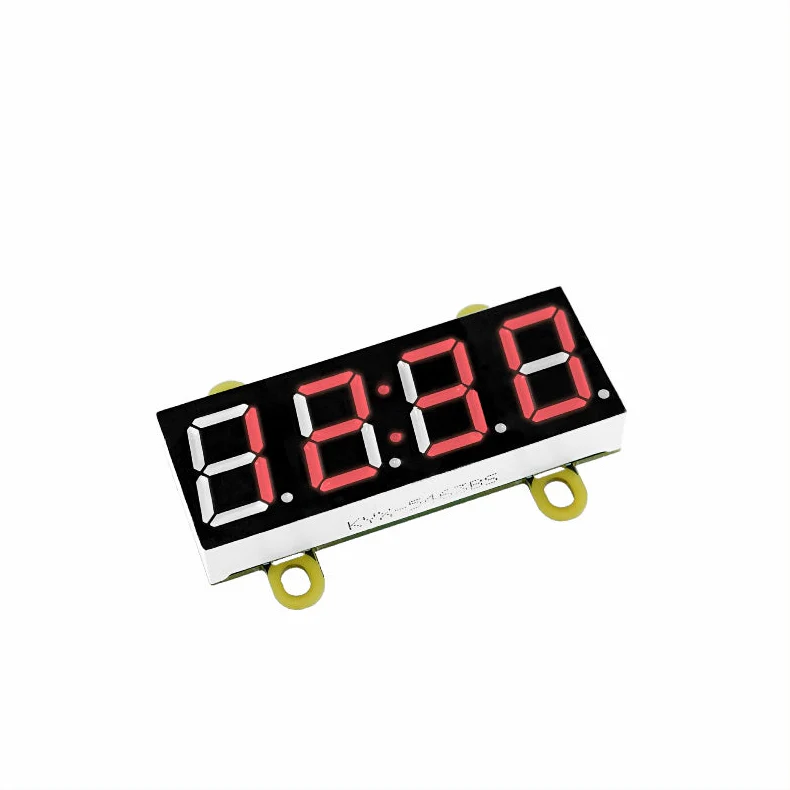

Red 7-Segment Digit Clock Unit

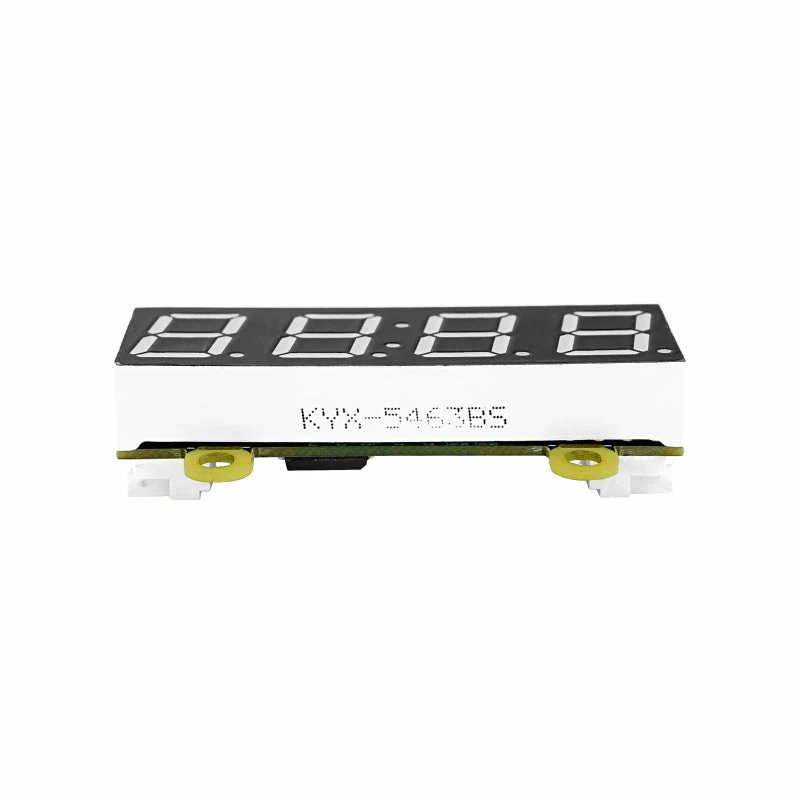

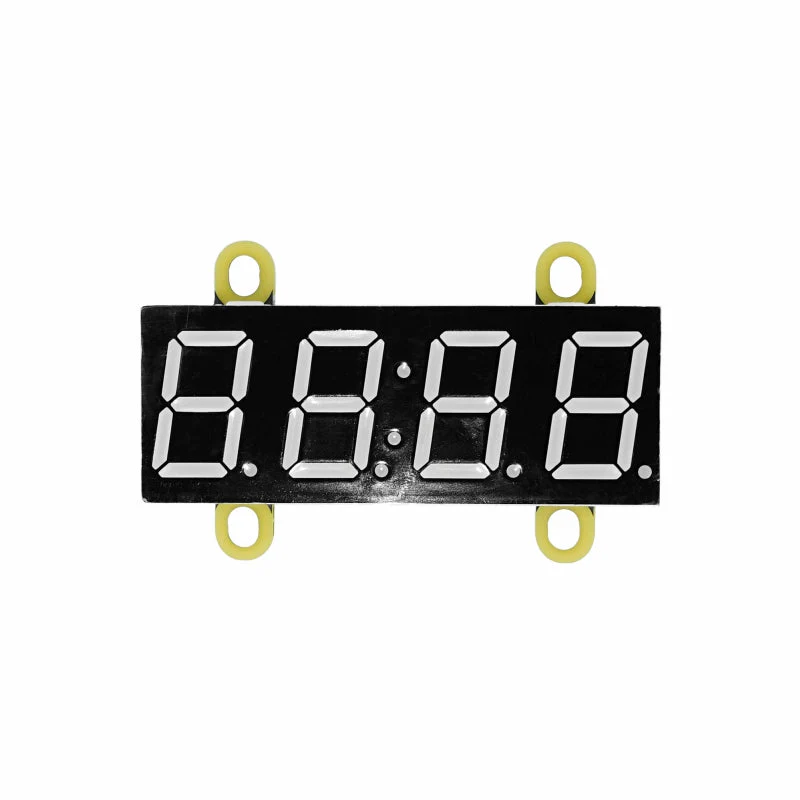

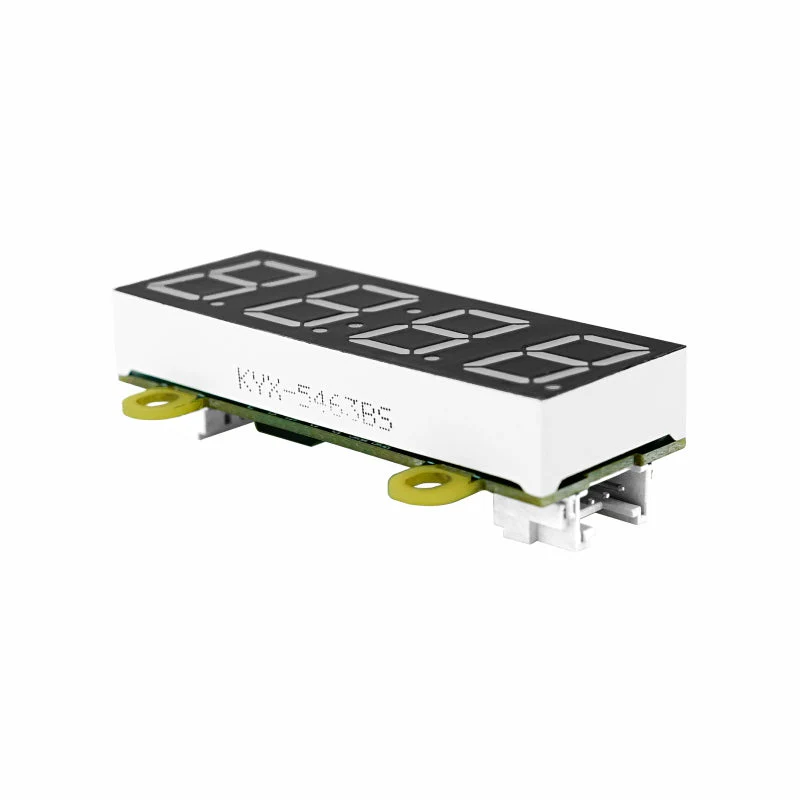

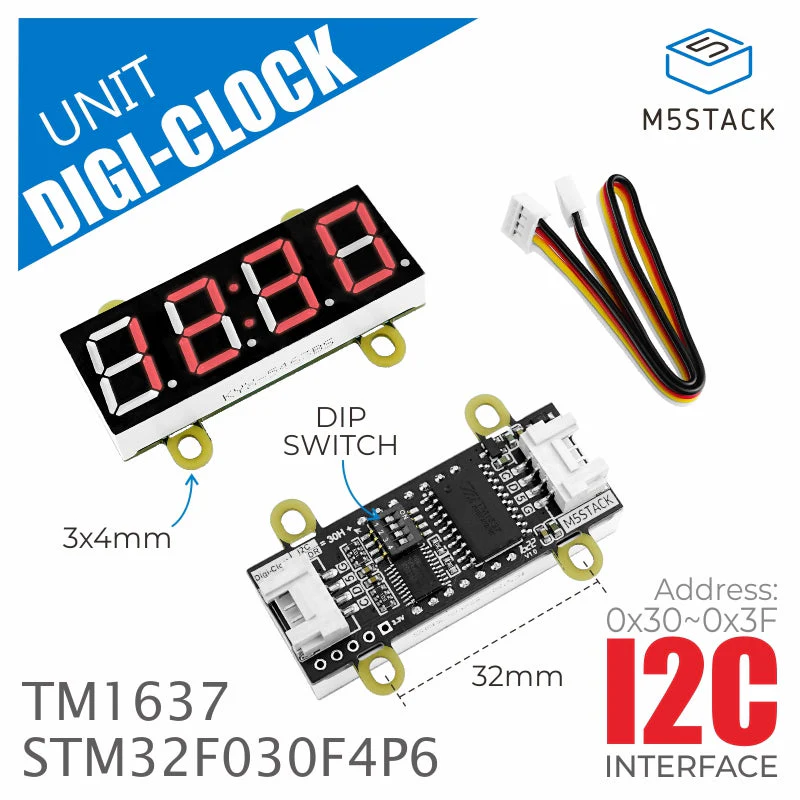

UNIT-Digi-Clock is a 2.1 inch 4-digit 7-segment display module. There are decimal points on each digit and an extra wire for colon-dots in the center, which can display Decimals and Clock.

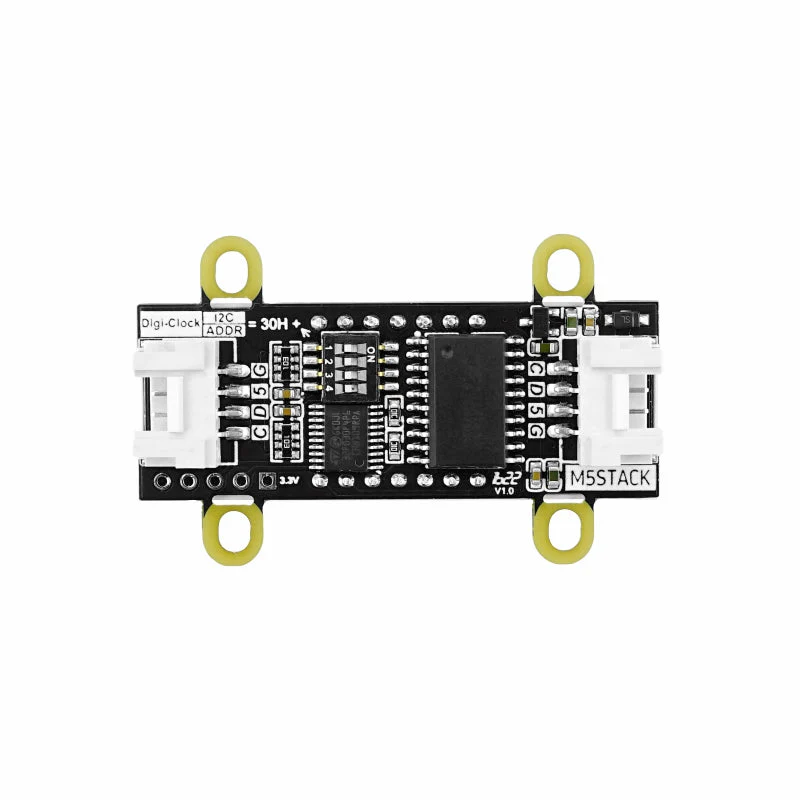

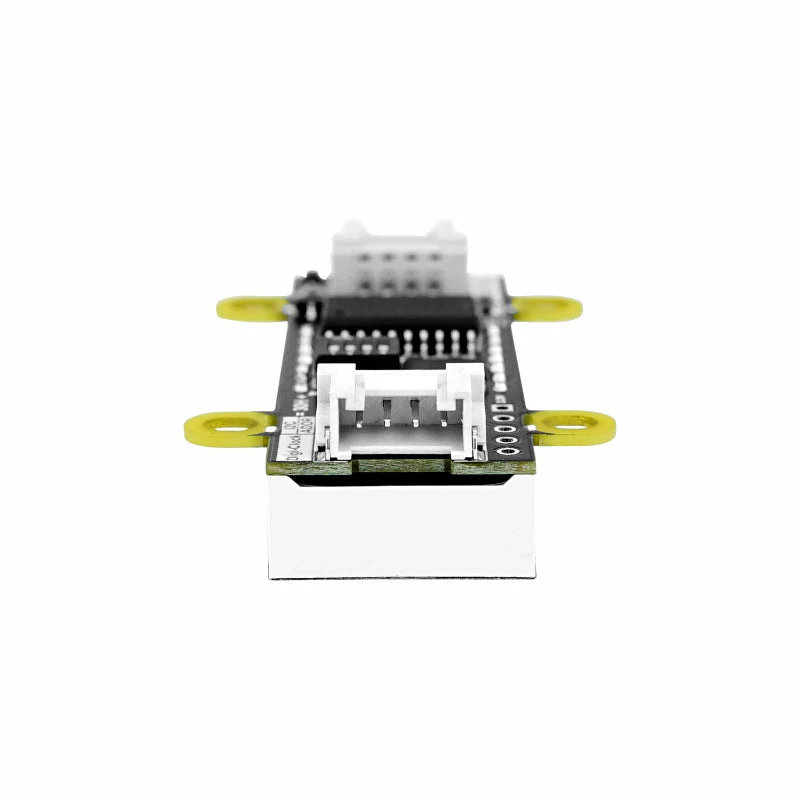

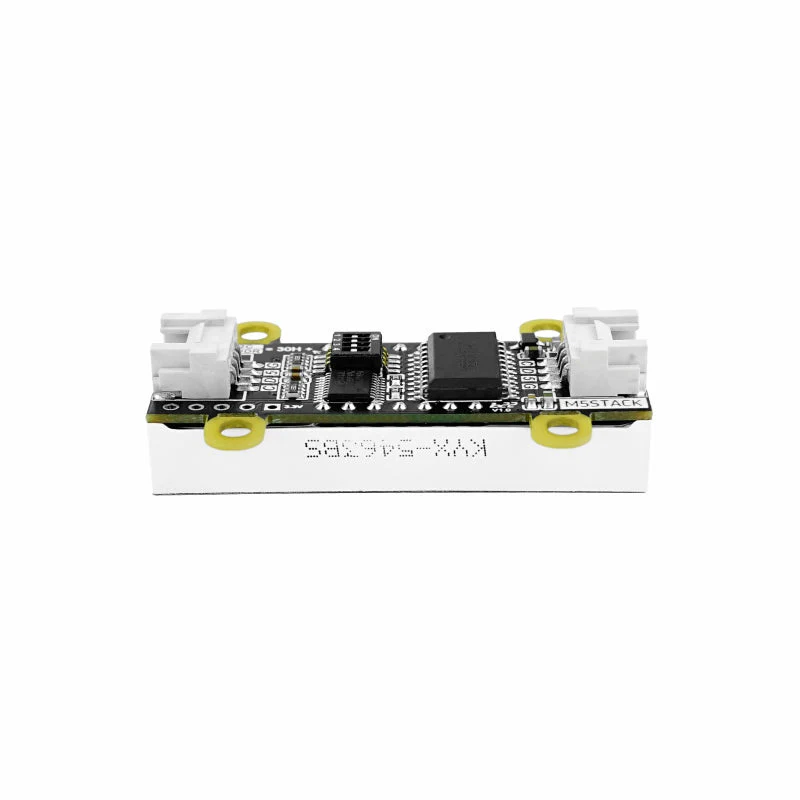

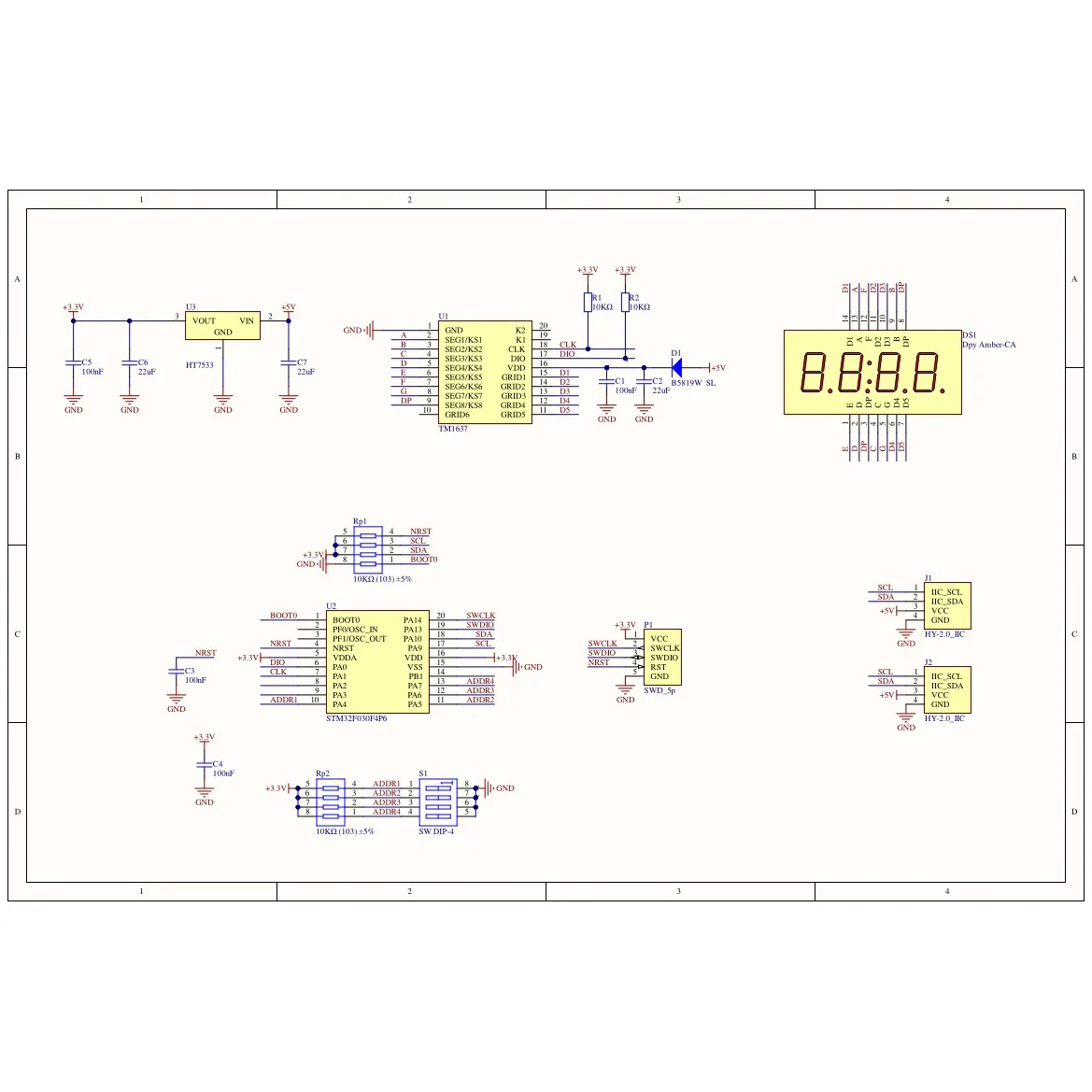

This module adopts TM1637 as the driver IC, and STM32F030 as I2C communication. I2C address can be modified per 4-bit dip switch. The red LED supports 8 brightness. And we have reserved 4 fixing holes there.

Features

• 4-digit red dislpay
• I2C port, adjustable I2C address
• 8 brightness
• Low power consumption
• 4 fixing holes for multiple installations

Includes

• 1x UNIT-Digi-Clock
• 1x HY2.0-4P Cable (20cm)

Application

• Clock display
• Data display
• Stop watch

Specifications

Spec	Parameters
MCU	STM32F030
Driver IC	TM1637
Communication	I2C, addr: 0x30
Power Supply	5V DC
Net Weight	12.5g
Gross Weight	17.8g
Product Dimension	50 x 31 x 14mm
Package Dimension	136 x 92 x 15mm

Power Consumption Testing

Environments	Current on DC5V
Standby Mode(All off)	2.5mA
SG1	6.6mA
SG2	10.3mA
SG3	17.5mA
SG4	38.7mA
SG5	42.0mA
SG6	45.7mA
SG7	49.2mA
SG8(All on)	52.5mA
